TER30X-A5 KiWiBot系列/人形機器人控制器/具身智能機器人控制器/機器人控制器

TER30X-A5 KiWiBot系列/人形機器人控制器/具身智能機器人控制器/機器人控制器

特點:

  • 支持Intel? 12/13th Gen Core i3/i5/i7 -U/P/H, Support max 45W
  • 標配5個獨立GbE接口
  • 4個USB 5Gbps?Type-A，內置3個USB 2.0 wafer接口
  • 默認4個RS232/RS485，8個GPIO
  • 支持Wi-Fi、BT、4G/5G等無線、移動網絡擴展
  • 智能風扇主動式散熱
  • 12~28V直流寬壓供電

  • 遠程管理

    遠程管理

  • 狀態監控

    狀態監控

  • 遠程運維

    遠程運維

  • 安全控制

    安全控制

掃碼即可添加微信，售前客服為您提供咨詢服務

產品介紹

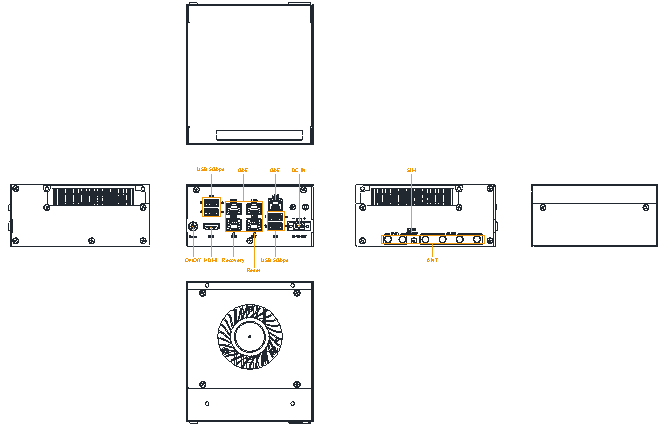

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model

TER30X-A5

Core Modules

 CPU Support Intel??12/13th Gen Core i3/i5/i7 -U/P/H, Support max 45W

Memory

 Socket 1 * Non-ECC SO-DIMM Slot, Up to DDR5 5200 MT/s

?

 Max Capacity Max. 32GB

Graphics

 Controller Intel??Iris??Xe Graphics

Ethernet

 Wired Module 1 * Intel??i219-V (10/100/1000 Mbps)

?

 ? 1 * Intel??i226-V (10/100/1000/2500 Mbps)

?

 ? 1 * Intel??i350-AM4 (10/100/1000 Mbps)

Storage

 M.2 1 * M.2 Key-M Slot (NVMe SSD, 2280)

Expansion Slots

 M.2 1 * M.2 Key-B?Slot?(USB 5Gbps +?USB 2.0, 3052, with 1 * Nano?SIM Card?Slot)
? ? 1 * M.2 Key-E?Slot (PCIe?x1 +?USB 2.0)

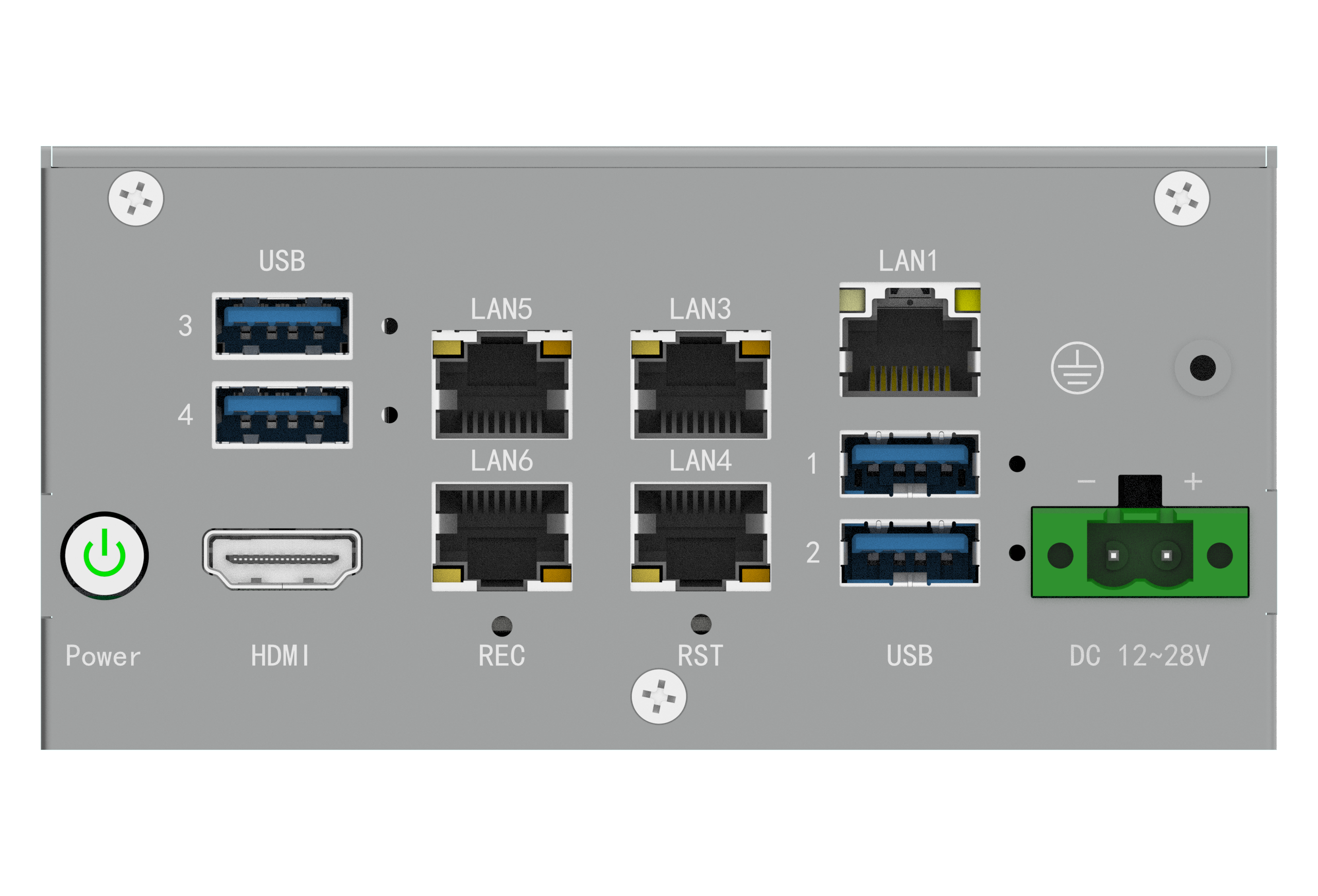

Front I/O

 Ethernet 5 * GbE (RJ45)
? USB 4 * USB 5Gbps (Type-A)
? Display 1 * HDMI: Resolution up to 4096*2304@30Hz (Type-A)
? Button 1 * Power Button + Power LED
? ? 1 * System Reset button
? ? 1 * System Recover?button
? Power Input 1 * Power Input (2P, P=5.00/5.08, Terminal Block)

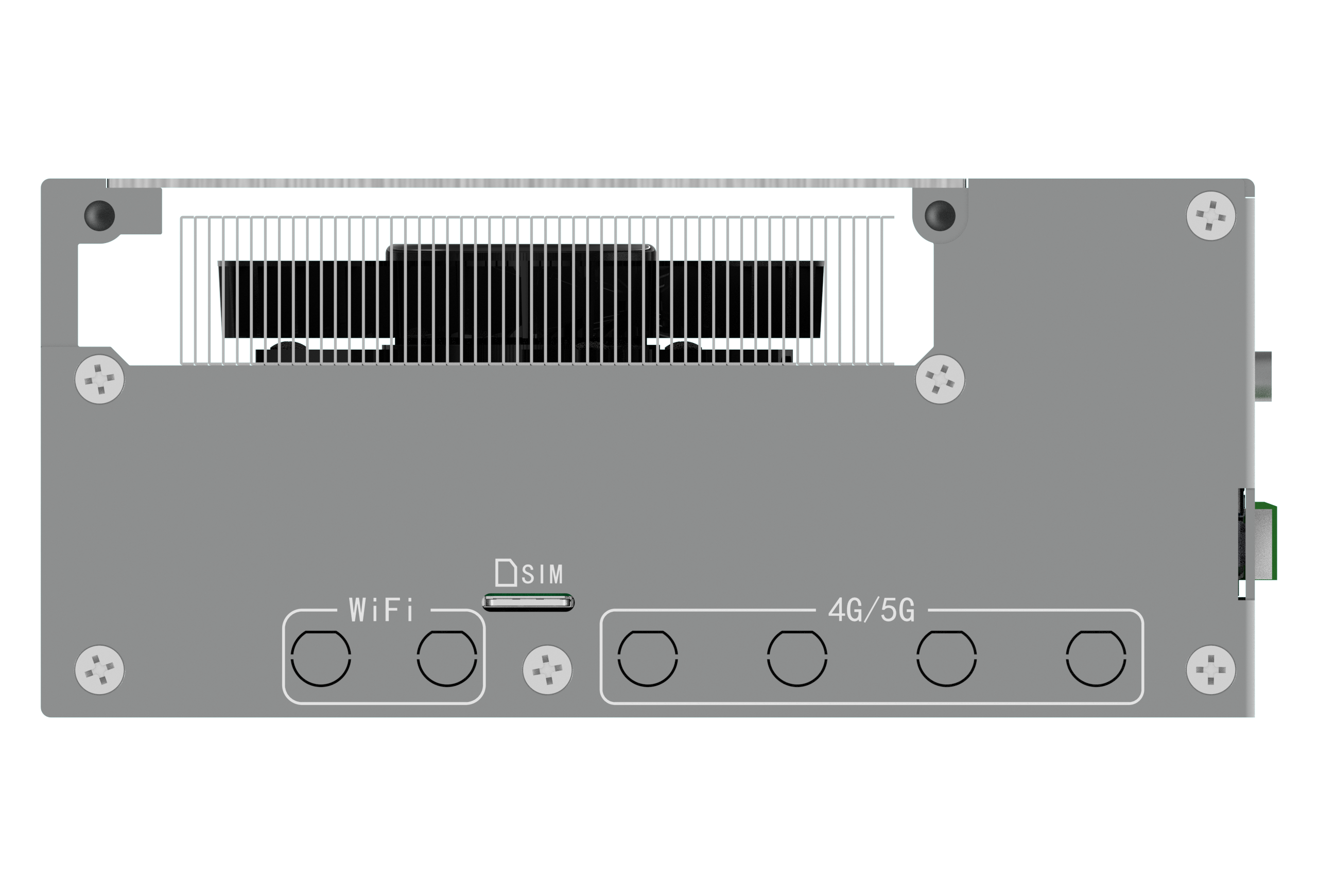

Side I/O

 SIM 1 * Nano?SIM Card Slots

Internal I/O

 Front Panel 1 * Front Panel (Power + Reset + Recovery, wafer)

?

 Ethernet 1 * GbE (wafer)
? FAN 1 * System Fan (wafer)
? GPIO 8bit?GPIO (OS Configurable DI/DO and H/L, wafer)
? Serial 4 * RS232/485 (Jumper Switch, wafer)
? Audio 1 * Audio?(Line_Out + Mic) (wafer)
? USB 3 * USB 2.0 (wafer)

Power Supply

 Type AT/ATX

?

 Power Input Voltage 12 ~ 28V DC
? Connector 1 * Power Input Connector (2P, P=5.08mm, Terminal Block)
? RTC Battery CR2032 Coin Cell

OS Support

 Linux Ubuntu?22.04

Mechanical

 Enclosure Material Aluminum alloy

?

 Dimensions 118.2mm(L) * 130mm(W)?* 57.6mm(H)

?

 Mounting Bracket Mounting

Environment

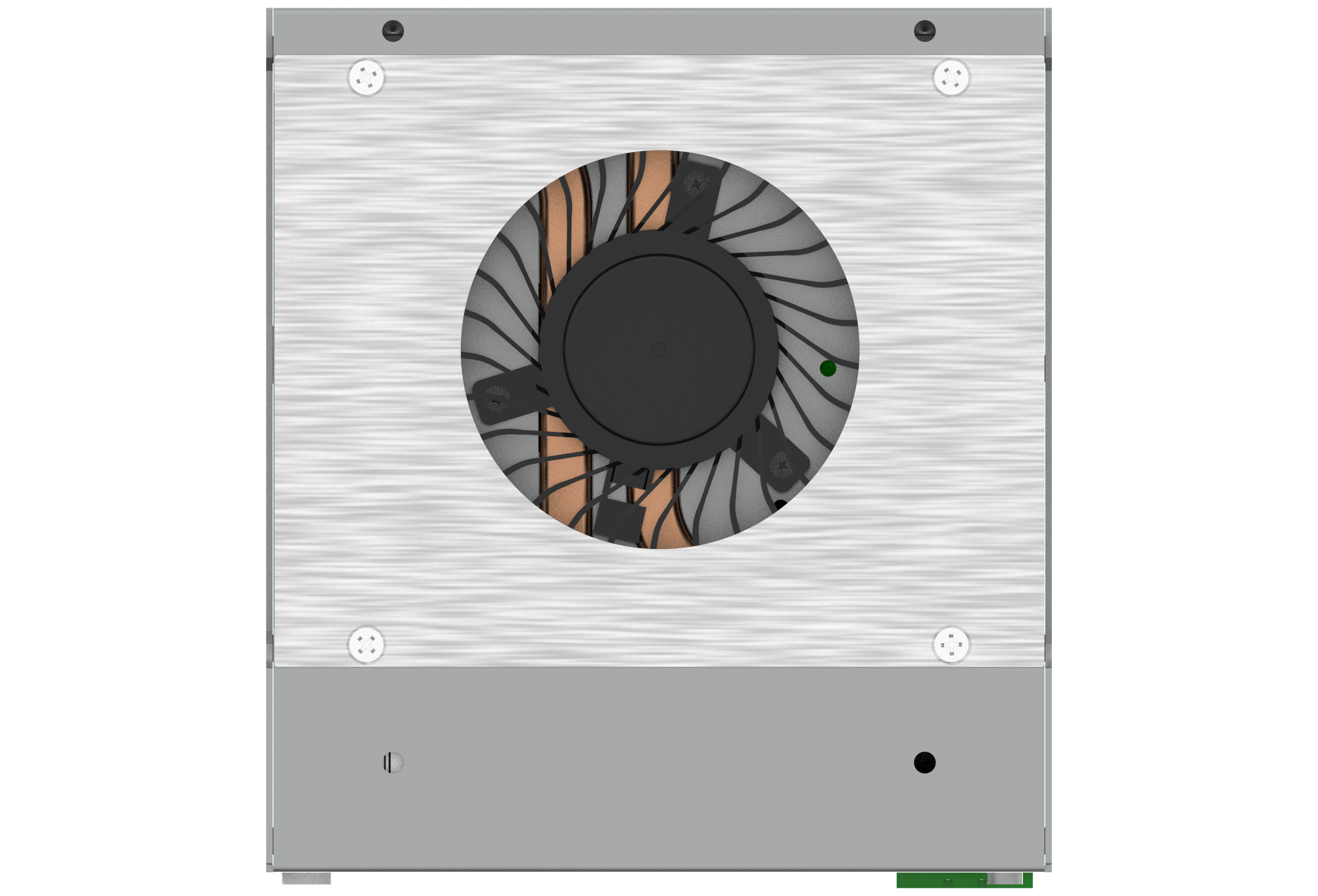

 Heat Dissipation System Active Fan Cooling

?

 Operating Temperature -20~50℃?with 0.7m/s (Industrial SSD)

?

 Storage Temperature -40~80℃?(Industrial SSD)

?

 Relative Humidity 10 to 95% RH (non-condensing)

?

 Vibration During Operation 3Grms@5~500Hz, random, 1hr/axis?(Industrial SSD)

?

 Shock During Operation 15G, half sine, 11ms, ±X/Y/Z, 3 shocks/axis?(Industrial SSD)
